flush panel
flush seam panel

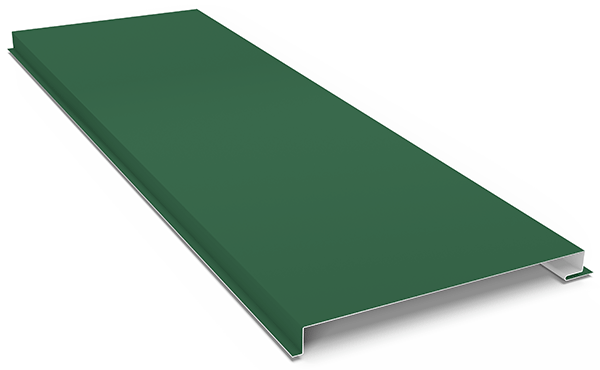

The Flush Seam panel is our most versatile panel that can be installed for wall, soffit, fascia, and screen wall applications. The panel is secured with concealed fasteners and does not require clips. The Flush Seam panel can be manufactured in a vented, pencil rib, or smooth profile.

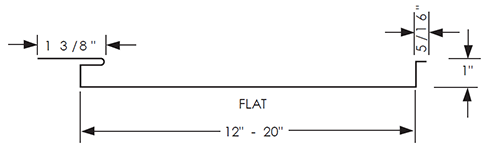

Profiles
PRODUCT DATA
Available Materials
Galvalume (22, 24 gauge)
Aluminum (.032, .040, .050)
Copper (16 & 20 oz)
Available Widths
12” – 20”

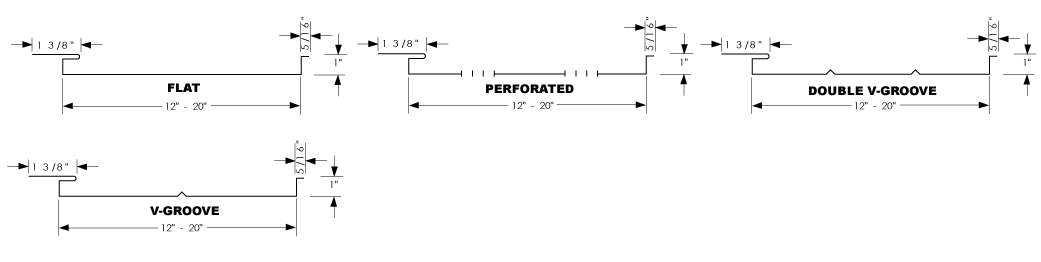

Panel Options
Flat
Perforated
V-Groove
Double V-Groove
Substrate Requirements
Can be installed over Solid Substrate or on Open Framing.
Finish
Kynar 500 (Fluoropolymer PVDF Coating)
Color Guide
Warranties
Testing
Panel Performance
ASTM 1592 (Uplift) Aluminum, Galvalume
Can be engineered to current ASCE 7 design standard
Sustainability
Energy Star
All of our metal panels are Energy Star certified and qualify for a federal tax credit. More Info ...
LEED
Our product can qualify for the following LEED Credits
- SS Credit 7.2 Heat Island Effect: Roof
- MR Credit 4.1 Recycled Content
- MR Credit 5.1 Regional Materials
Please contact Metal Roofing Systems to find out if your project will qualify for these LEED credits.
AIA Continuing Education Program
Metal Roofing Systems offers several courses approved by the AIA for architects. These courses are rich with information and provide architects with continuing education units or credits. Our courses encompass various topics including Standing Seam Metal Roof Systems, Metal Roofing Details and Warranties.
