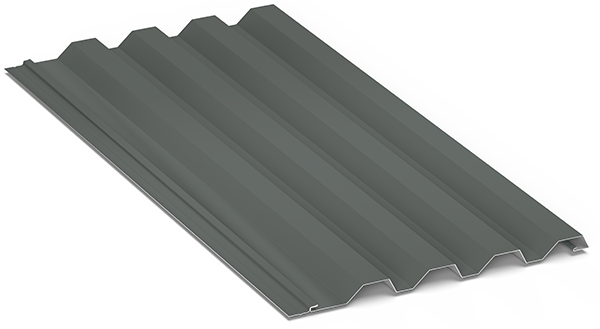

m16 wall panel
wall panel
The M-16 panel is an architectural wall panel that provides design flexibility by combining bold visual effects with easy installation. The panel can be installed either vertically or horizontally. The panel can be installed using concealed fasteners or with optional clips to accommodate thermal movement.
Product Data
Available Materials
Galvalume (22, 24 gauge)
Aluminum (.032, .040, .050)
Copper (16 & 20 oz)

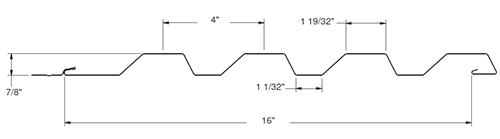

Available Widths
16”
Panel Options
Optional High Wind Clip
Substrate Requirements
Can be installed over Solid Substrate or on Open Framing.
Finish
Kynar 500 (Fluoropolymer PVDF Coating)
color guide
Warranties
Testing
Panel Performance
ASTM 1592 (Uplift) Aluminum, Galvalume
ASTM 331(Water Penetration)
ASTM 283(Air Leakage)
Can be engineered to current ASCE 7 design standard
Sustainability
Energy Star
All of our metal panels are Energy Star certified and qualify for a federal tax credit. More Info ...
LEED
Our product can qualify for the following LEED Credits
- SS Credit 7.2 Heat Island Effect: Roof
- MR Credit 4.1 Recycled Content
- MR Credit 5.1 Regional Materials
Please contact Metal Roofing Systems to find out if your project will qualify for these LEED credits.
AIA Continuing Education Program
Metal Roofing Systems offers several courses approved by the AIA for architects. These courses are rich with information and provide architects with continuing education units or credits. Our courses encompass various topics including Standing Seam Metal Roof Systems, Metal Roofing Details and Warranties.
