nailstrip
snap lock

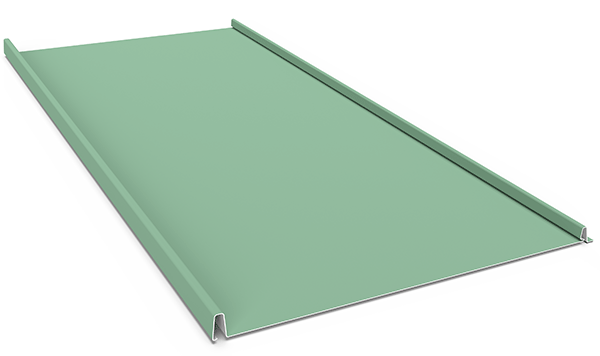

The nailstrip panel is ideal for light commercial or residential applications. The panel is a concealed fastener panel system that offers easy installation and does not require clips. The panels snap together without the use of any special tool.

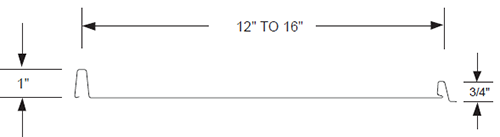

PROFILES
PRODUCT DATA
Available Materials
Galvalume (22, 24 gauge)
Aluminum (.032, .040, .050)
Copper (16 & 20 oz)
Available Widths
12” – 16”
Panel Options
Flat
Striations
Substrate Requirements
Can be installed over Solid Substrate
Minimum Roof Pitch
3:12
Underlayment
Ice & Water Shield (Recommended) or Synthetic Underlayment.
Finish
Kynar 500 (Fluoropolymer PVDF Coating)
Color Guide
Warranties
Sustainability
Energy Star
All of our metal panels are Energy Star certified and qualify for a federal tax credit. More Info ...
LEED
Our product can qualify for the following LEED Credits
- SS Credit 7.2 Heat Island Effect: Roof
- MR Credit 4.1 Recycled Content
- MR Credit 5.1 Regional Materials
Please contact Metal Roofing Systems to find out if your project will qualify for these LEED credits.
AIA Continuing Education Program
Metal Roofing Systems offers several courses approved by the AIA for architects. These courses are rich with information and provide architects with continuing education units or credits. Our courses encompass various topics including Standing Seam Metal Roof Systems, Metal Roofing Details and Warranties.
