MRS 1500 - 1.5” Mechanical Lock
MECHANICAL SEAMED

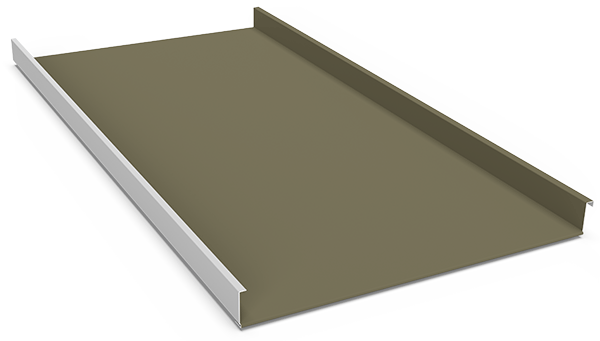

The System 1500 metal roof panel is a 1-1/2” mechanically seamed metal roof system offering the aesthetics of a historical field formed roof panel. This metal roof panel can meet high wind loads and will perform well in low slope roof conditions. This panel can be installed using different seam styles: 90°(Single Lock) and 180° (Double Lock) with the use of a mechanical field seamer. The panel design is excellent for radius roof conditions.
Available Materials
Galvalume (22, 24 gauge)
Aluminum (.032, .040, .050)
Copper (16 & 20 oz)
Available Widths
12” – 20”

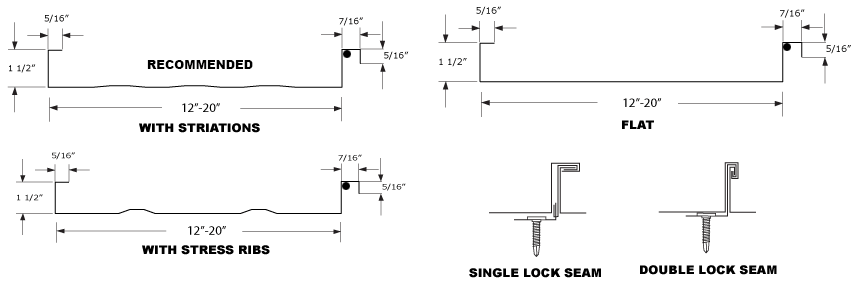

Panel Options
Striations (Recommended)
Stress Ribs
Curved/Radius
Flat (Not Recommended)
Optional Clip Relief
* Factory applied Seam Sealant
Substrate Requirements
Can be installed over Solid Substrate.
Minimum Roof Pitch
1:12
Underlayment
Ice & Water Shield (Recommended) or Synthetic Underlayment.
Finish
Kynar 500 (Fluoropolymer PVDF Coating)
** Mechanical Seamer Required
Panel Performance
UL 580 Class 90 (Uplift),
ASTM 1592 (Uplift) Aluminum, Galvalume
Can be engineered to current ASCE 7 design standard
Energy Star
All of our metal panels are Energy Star certified and qualify for a federal tax credit. More Info …
LEED
Our product can qualify for the following LEED Credits
- SS Credit 7.2 Heat Island Effect: Roof
- MR Credit 4.1 Recycled Content
- MR Credit 5.1 Regional Materials
Please contact Metal Roofing Systems to find out if your project will qualify for these LEED credits.
