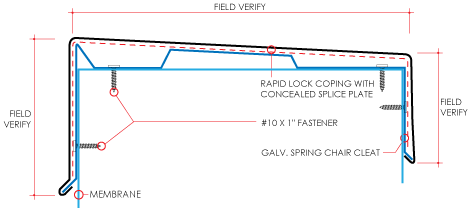

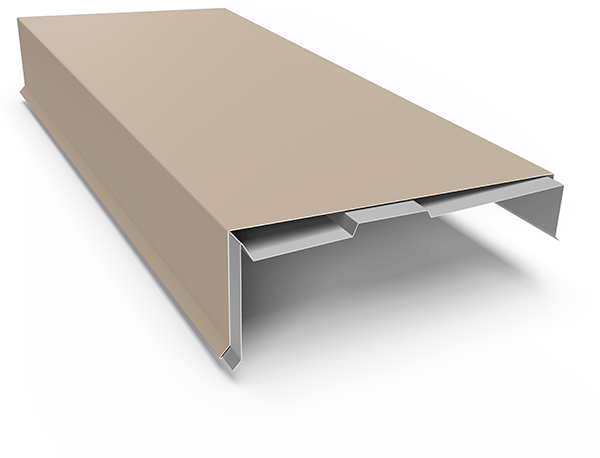

rapid lock coping
perimeter edge metal
The Rapid Lock Coping is tested to meet ANSI/SPRI ES-1 standards.
PRODUCT DATA
Available Coping Materials
Galvalume (22, 24 gauge)
Aluminum (.032, .040, .050, .063)
Stainless (24, 26 gauge)
Available Chair Materials
* Chair requires 1-1/4" rise above wall
20 ga Galvanized standard
Finish
Kynar 500 (35 year non-prorated finish warranty)
COLOR GUIDE
30 different stock colors to choose from
* Custom colors available upon request
WARRANTIES
Wind Warranties
* All wind warranties require an ANSI/SPRI ES-1 Certified Analysis
- 20 Year 150 mph Roof Edge System Wind Warranty (PDF)
- 20 Year 120 mph Roof Edge System Wind Warranty (PDF)
- 20 Year 110 mph Roof Edge System Wind Warranty (PDF)
- 20 Year 90 mph Roof Edge System Wind Warranty (PDF)
Finish Warranties
- 35 Year Finish Warranty (PDF)
- Coastal Finish Warranty (PDF)
Material Warranty
SUSTAINABILITY
Energy Star
All of our metal edge components are Energy Star certified and qualify for a federal tax credit. More Info ...
LEED
Our product can qualify for the following LEED Credits
- SS Credit 7.2 Heat Island Effect: Roof
- MR Credit 4.1 Recycled Content
- MR Credit 5.1 Regional Materials
Please contact Metal Roofing Systems to find out if your project will qualify for these LEED credits.
ANSI/SPRI ES-1 Testing
Our goal is to provide tested products at a reasonable cost. Other manufacturers place a huge premium on their products, often exceeding budgets and forcing value engineering. Using our edge systems protects the building envelope without “breaking the bank”. The result is a high quality product that matches performance with affordability. All of our edge systems are tested with our state of the art UL certified testing apparatus.
AIA Continuing Education Program
Metal Roofing Systems offers several courses approved by the AIA for architects. These courses are rich with information and provide architects with continuing education units or credits. Our courses encompass various topics including Standing Seam Metal Roof Systems, Metal Roofing Details and Warranties.
