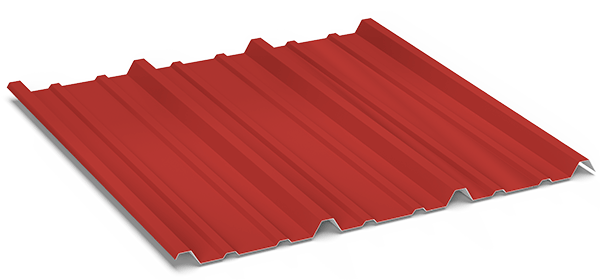

R PaNEL
THRU FASTENed PANEL
The R Panel can be installed in a wide range of commercial and residential applications. The panel is a multi-use roof and wall panel that is secured with fasteners through the panel. The panel has excellent purlin spanning capabilities.
PRODUCT DATA
Available Materials
Galvalume (24, 26 gauge)

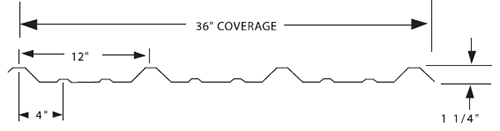

Available Widths
36”
Substrate Requirements
Can be installed over Solid Substrate or on Open Framing.
Minimum Roof Pitch
1:12
Recommendation
Solid Substrate requires 30# Felt, Ice & Water Shield or Synthetic Underlayment.
Finish
Kynar 500 (35 year non-prorated finish warranty)
Warranties
Kynar Finish Warranties
- 35 Year Finish Warranty (PDF)
- Coastal Finish Warranty (PDF)
Siliconized Polyester Finish Warranty
Sustainability
Energy Star
All of our metal panels are Energy Star certified and qualify for a federal tax credit. More Info ...
LEED
Our product can qualify for the following LEED Credits
- SS Credit 7.2 Heat Island Effect: Roof
- MR Credit 4.1 Recycled Content
- MR Credit 5.1 Regional Materials
Please contact Metal Roofing Systems to find out if your project will qualify for these LEED credits.
